BIM for Facility Management

If your engineering team still walks the building to find a shutoff valve or measure a clearance before every work order, a facility BIM model moves that search to the desk. Building Information Modeling (BIM) for facility management connects the spatial geometry of a building directly to your structured operational records. Facility managers use these models to locate mechanical assets, verify clearances, and retrieve maintenance logs without leaving their desks. Replacing disconnected paper archives with a spatially indexed digital environment gives your engineering team a measurable baseline for renovations and preventive maintenance.

How does BIM transition from construction to facility management?

A construction model focuses on fabrication and clash detection, while a facility management model focuses on asset data and operational maintenance. General contractors use Level of Development (LOD) 350 or 400 to build the structure. When the project finishes, the final deliverable shifts to LOD 500, which the BIMForum defines as a field-verified representation of the completed space.

We execute scan-to-BIM workflows to capture the actual installed conditions of the mechanical, electrical, and plumbing (MEP) systems. This ensures the digital model matches the physical building rather than the original design intent. Instead of inheriting an outdated design model, your facility team receives an accurate Revit model where every air handler and pump corresponds to its exact physical location.

How do you link O&M manuals to a 3D model?

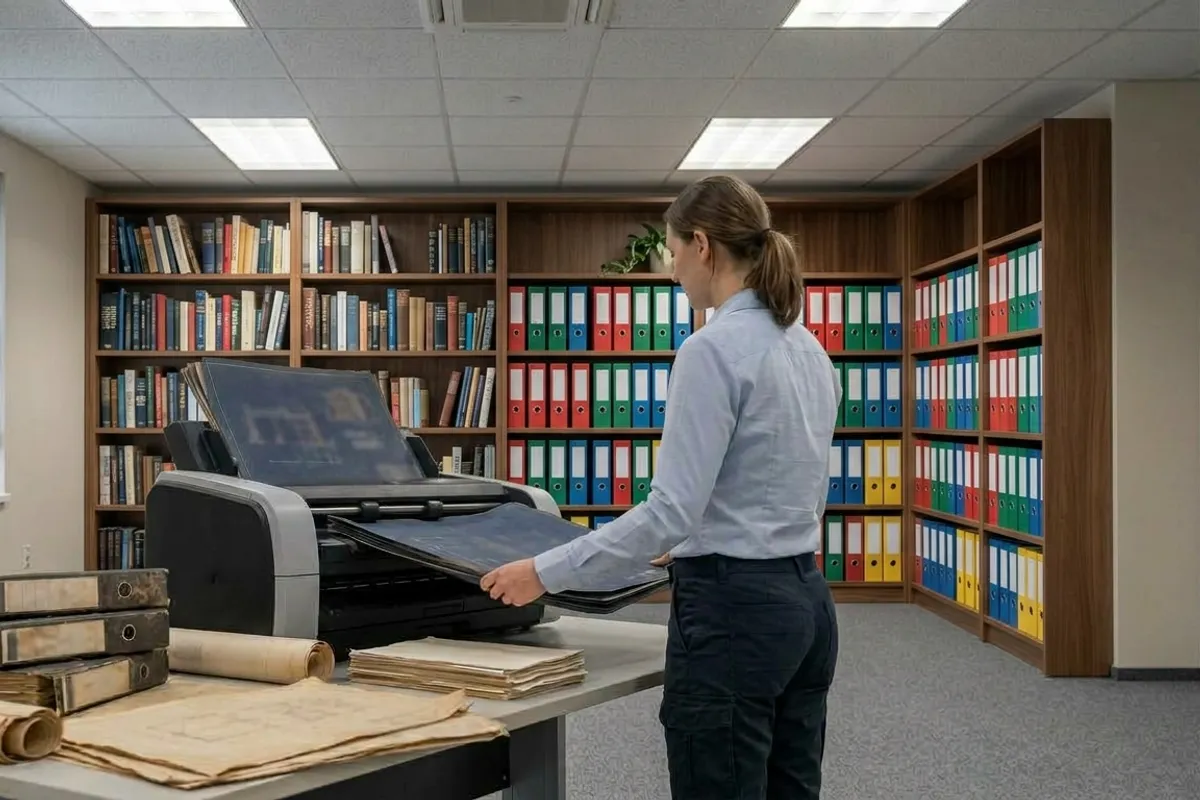

Spatially indexed digital twins anchor your isolated O&M manuals, warranty PDFs, and historical maintenance logs to the 3D model. This spatial indexing is the foundation of facility document digitization. We deploy high-volume document scanners to digitize legacy paper archives. We then process the unstructured text using AI-assisted OCR with human verification to extract asset tags and metadata.

Because extracting text from faded blueprints and old maintenance binders is prone to errors, the human verification step ensures the data linked to your BIM environment is highly reliable. Our custom RAG infrastructure allows your team to search the archive using natural language. A technician clicks on a specific chiller in the 3D environment to retrieve its associated paperwork before walking into the mechanical room.

What hardware is required to capture the baseline geometry?

Capturing the existing conditions of a facility requires survey-grade terrestrial laser scanning. We capture the baseline geometry using the Leica RTC360, which produces high-density point clouds accurate to +/-2 mm. The scanner fires millions of laser pulses to map the structural envelope and the exposed MEP systems.

Once the field data is collected, the processing team registers the individual scans into a unified point cloud using Cyclone REGISTER 360 PLUS. This registered point cloud is the raw measured truth of the site. From there, modelers trace the precise geometry in Autodesk Revit to create parametric building elements at LOD 200 through 500. This millimeter-level precision ensures that the visual representation matches the true physical space.

When is a full 3D model unnecessary for facility management?

A full 3D BIM environment is the wrong choice if your only requirement is locating basic fire extinguisher stations or updating a 2D evacuation route. Translating a simple commercial office layout into a spatially indexed 3D model burns budget for a problem that a basic floor plan solves.

If your team only needs to map the footprint of interior partition walls, we generate a 2D AutoCAD DWG directly from a horizontal slice of the point cloud. BIM excels at complex asset management and multi-trade coordination in dense mechanical spaces. It adds unnecessary overhead for a single, isolated maintenance task on a flat layout.

What factors drive the cost of adopting BIM for existing buildings?

The total cost to capture and digitize an existing facility depends on the total square footage, the density of the mechanical systems, and the volume of legacy documents requiring digitization. Open warehouse spaces move quickly because the scanning line of sight is clear and the asset count is low. A heavily congested industrial plant takes longer because technicians must execute more scan positions to capture equipment tags and eliminate shadows behind densely packed pipes.

Pricing also scales with the condition of your existing documentation. If your facility maintenance records are already organized in clean PDF formats, linking them to the 3D space requires minimal processing. If your archives consist of decades-old paper blueprints and faded warranty binders, the project requires extensive high-volume document scanning before spatial linking can occur. Send us your project scope and we will define a clear project timeline.

What formats do facility teams need for a digital handover?

A standard digital handover package includes the native 3D model, the raw spatial data, and the digitized asset records. The primary deliverable is the Autodesk Revit (RVT) model, which contains the parametric elements and embedded COBie (Construction Operations Building Information Exchange) data. This standardized data structure allows your facility manager to import asset schedules directly into a Computerized Maintenance Management System (CMMS) without manually retyping equipment serial numbers. We also deliver the baseline LiDAR point cloud in an indexed format like E57 or RCP.

Delivering the raw E57 point cloud ensures your future engineering contractors always have the underlying raw data for subsequent design phases. The extracted O&M manuals and warranty documents are formatted as structured PDFs linked through the custom RAG infrastructure. We execute these 3D laser scanning and digitization workflows serving all of San Diego County, with projects across Orange County, Riverside County and the Inland Empire. Provide your internal software requirements and we will structure the deliverables to load directly into your existing maintenance platforms.

Send us the list of systems your team maintains most often, and we will tell you which assets are worth tagging first.
